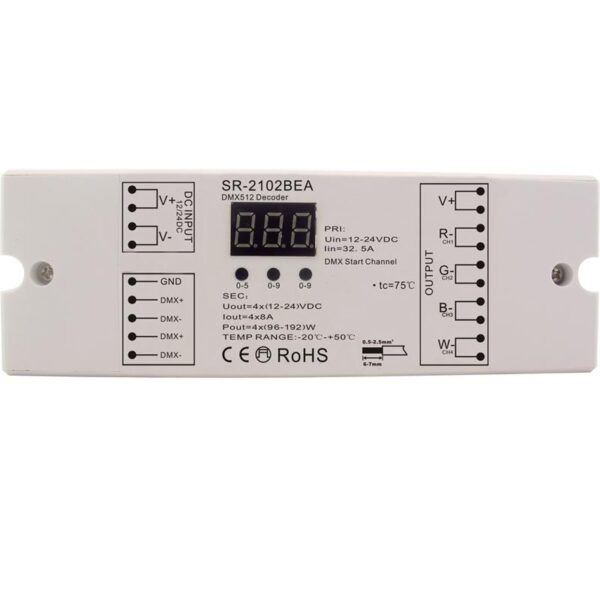

RGBW RGBA 4 Channel DMX Decoder

Product Description

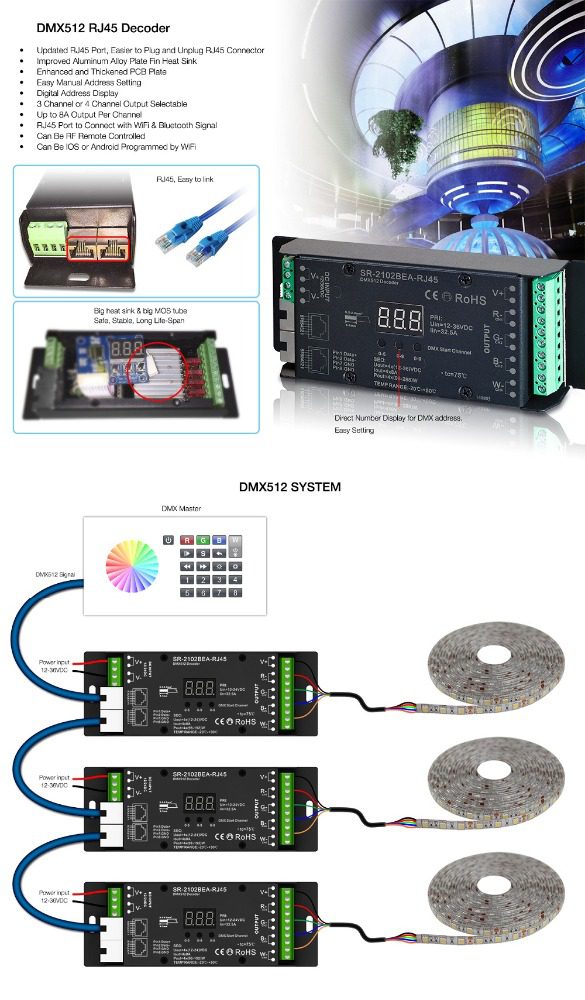

The 4 Channel DMX512 RGBA or RGBW decoder will drive any of our RGB Flexible strip lighting with the added advantage of driving a fourth channel of either white or amber.

• DMX512 compliant control interface, manual/automatic addressable and address shows via numerical digital
• 3-channel/4-channel output selectable, Max 8A per channel.
• Input & output Voltage: 12-24
• Load Current: 3/4×5A and 3/4×8A3/4/5×5A and 3/4/5×8A
• Max Load Power: 3/4×60-180W and 3/4×96-288W and 3/4/5×60-180W,3/4/5×96-288W
• Working Temperature: -20-+50
• Load Type: 0.04-0.1W (regular LED)
• Appearance Dimension: L178×W45×H19 mm and L178×W58×H29

Click to download a user manual.
